产品属性
| 产品名称： | 套管式换热器 |
| 产品编号： |
产品描述
1.产品简介

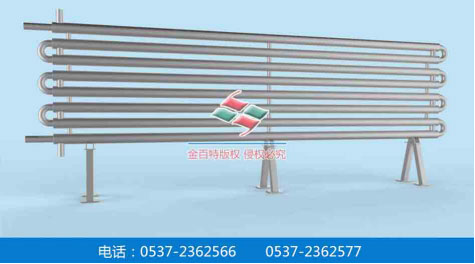

套管式换热器是公司常规产品之一，主要用于动态循环蒸发浓缩器中加热浓缩处理介质，液-液之间逆流热交换，效率高，无糊层，易于清洗。
本公司生产的套管式换热器，有加热面积可调式和不可调式两种型式。
本公司生产的套管式换热器，完全按照GMP的规范要求设计、生产制造。

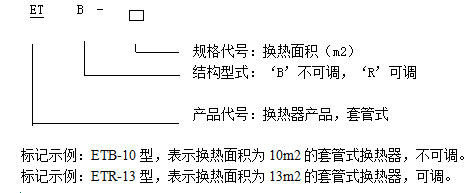

2.型号代号：
3.型号规格
3.1.不可调套管式换热器
特点：换热面积固定不可调。
型号规格一览表

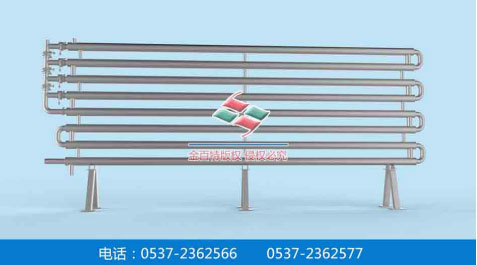

3.2.可调套管式换热器
特点：换热面积可调。
型号规格一览表
3.3.上述任一产品，都可根据用户要求设计定制换热面积，以及进出口管径等。
4.配置
4.1.标准配置
管件、管口
保温层
4.2.定制配置
在线温度计
5.材质
材质有sus30408、sus316等选择，也可根据客户的要求定做特种材质。
6.表面处理

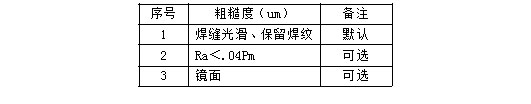

6.1.1.内表面粗糙度有下列选择

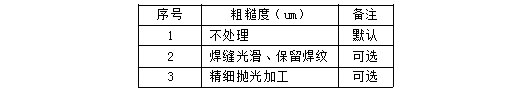

6.1.2.外表面粗糙度有下列选择
